Description

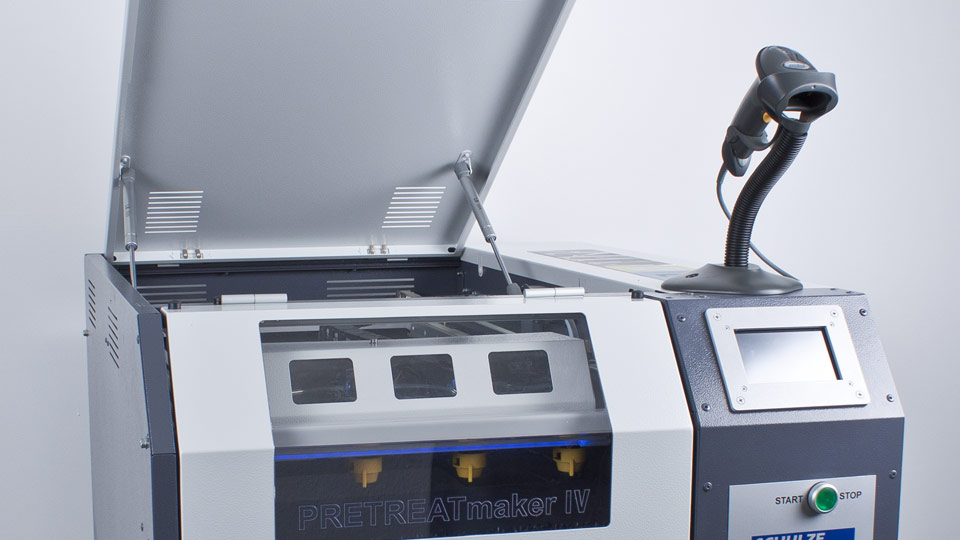

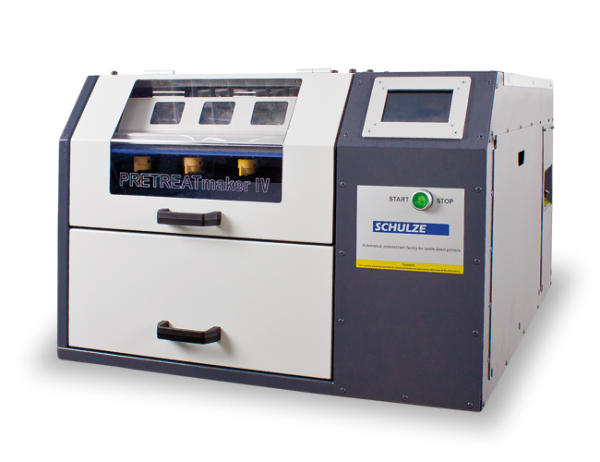

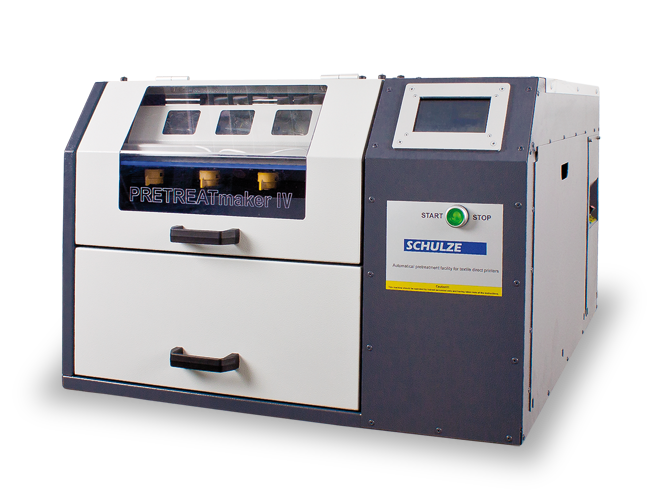

SCHULZE PRETREATmaker IV Automatic Pre-Treatment Machine

The PRETREATmaker IV is an automatic high-end pretreat system for professional users resulting from consistent refinement and trend insights.As a novelty, the unit is equipped with a multiphase motor (step motor). The machine does have a total of 4 valves which can be individually switched on or off. The maximum spray area is 40 cm in width and 60 cm in length. The width can be regulated by switching the 4 valves on or off. Therefore the minimal spray width is 12 cm, the ideal width for chest prints. Furthermore, the length can be regulated in 2-cm intervals. Spraying is possible uni and bi-directional. This will allow each user to set up the unit according to their needs.At DPSB, we also sell the Epson SureColor SC-F2100 Direct to Garment Printer, which works amazingly in conjunction with this machine.

Why choose the SCHULZE PRETREATmaker IV?

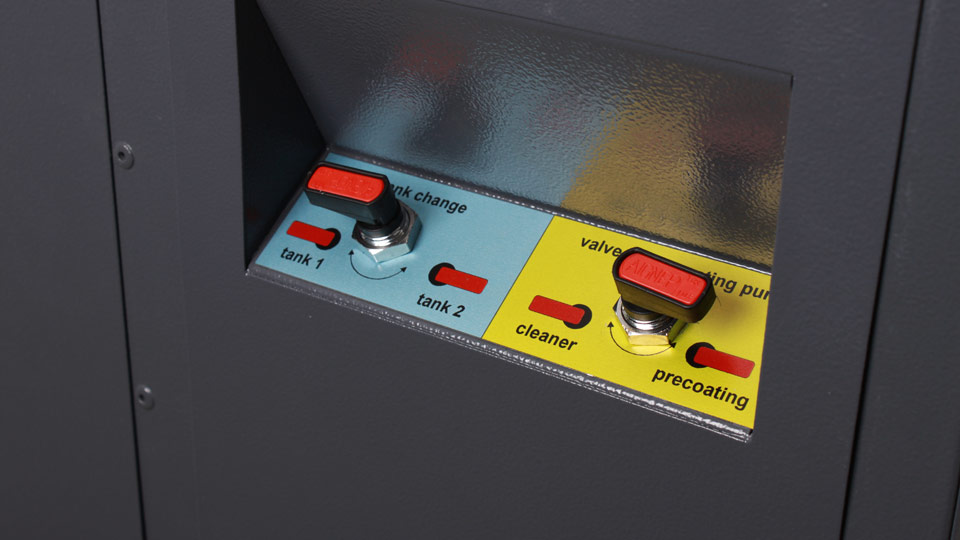

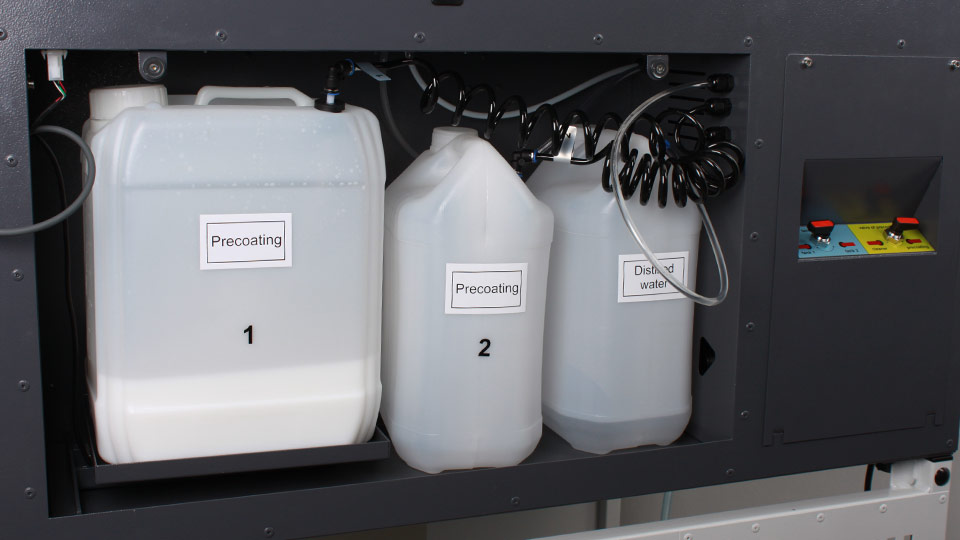

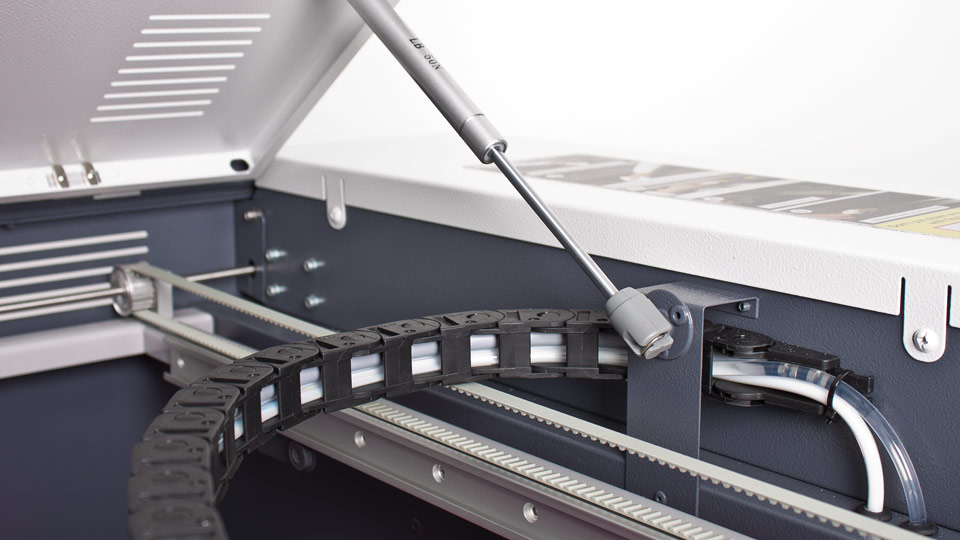

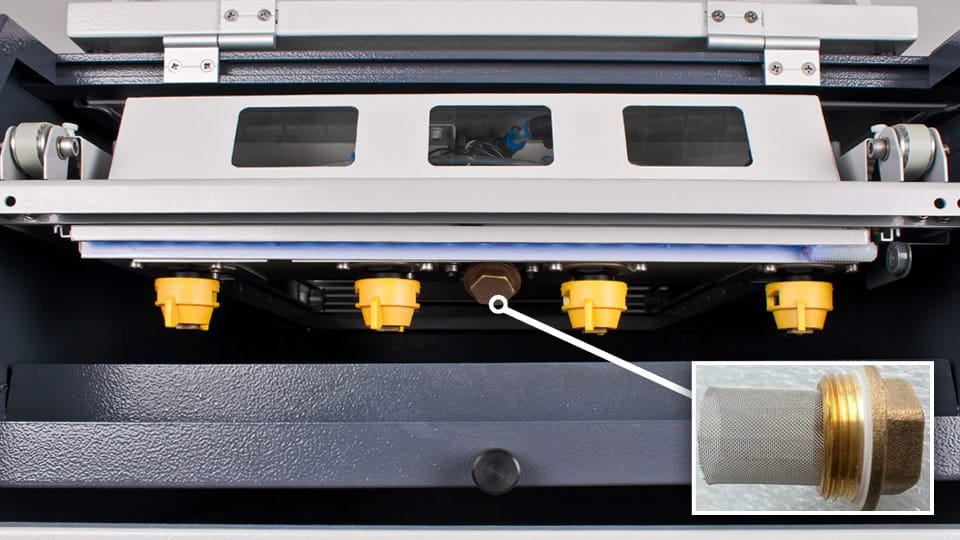

Within the carriage, there is an implemented additional filter that traps dirt from pumps and tubes. This innovative filter will help to minimize blockage of the nozzles from deposition from within the system.Another novelty is the new switch valve which allows the user to use two different precoating liquids. Also, an additional switch is used to clean the precoating pump (incl. the pipe system). For that purpose, the machine offers an automatic cleaning function within the touchpad menu. All drawer rails are now equipped with an improved protection system.The PRETREATmaker IV is available with an optional scale that can be connected to the machine. After each cycle, his innovation will show in the display the amount of precoating used. A useful feature to see if nozzles and systems are working right. An additional feature is unlocked and will show low-volume levels of precoating on the display.Another special feature of the PRETREATmaker IV is its open interface which can be used to program the unit either directly through the client’s order system or by printing a barcode. This optional feature will simplify and speed up your workflow. With this feature, the PRETREATmaker IV can be operated by untrained staff.For sure the PRETREATmaker IV is equipped with a well-known and well-proven automatic cleaning interval function. This feature prevents the nozzles from clogging during daily operations. Flushing of the nozzles with cleaner or water is limited to the last 10 cm of the tube before the nozzles. Above all, this feature saves a lot of precoating liquid.
