Description

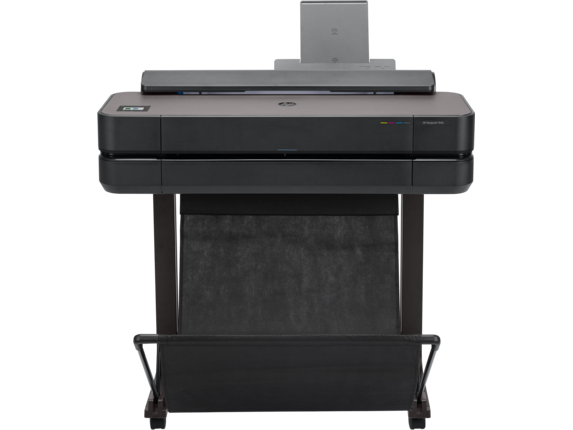

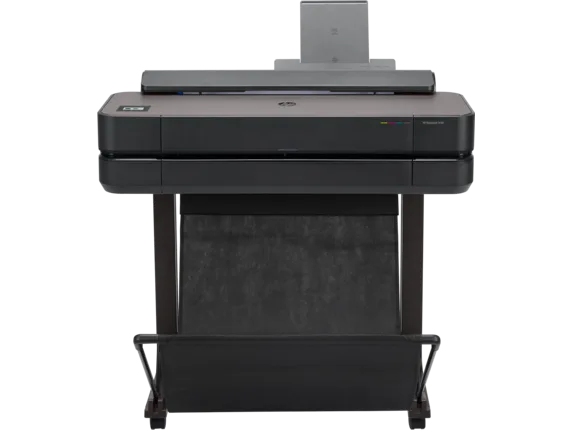

Overview of the HP DesignJet T650 - 24"

The HP DesignJet T650 - 24" large format printer is ideal for Professional users, especially micro/small architect, engineering, and construction work teams that print large format up to A1 and move between local and remote worksites and need easy mobile printing. The HP DesignJet T650 - 24" is also available in A0 size (HP DesignJet T650 Large Format up to A0 Plotter Printer-36")

Supported Media Sizes

Media Sizes: 24-in wide rolls; A4, A3 wide sheets

Media Handling

Media Handling: Sheet feed; roll feed; input tray; automatic horizontal cutter

Easy printing / Unique Differentiator

Easy printing Features: Free software to send multiple files in one click for easy job submission, applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files. Print multi-size A3 and A1 printing projects without manually switching the media source.

Connectivity / Mobile Printing

Connectivity: Wi-Fi, Gigabit Ethernet (1000Base-T). Mobile Printing: Direct print for mobile apps for iOS, Android and Chrome OS; email printing with HP Smart app for iOS and Android. Hi-Speed USB 2.0, Wi-Fi 802.11. Raster driver for Windows and macOS. HP-GL/2, HP-RTL, CALS G4, JPEG, URF languages

Sustainability of the HP DesignJet T650 - 24"

Designed with sustainability in mind by using up to 30% of recycled plastic while allowing Architects, Engineers and Construction professionals to deliver a more sustainable workflow. Firstly it is Superior energy efficiency certified with ENERGY STAR compliant power options. Secondly, its EPEAT Gold certification meets 75% of the criteria for reduced environmental impact.

Print Speeds

Print Speeds: Up to 26 sec/page on A1/D, 81 A1/D prints per hour

Training / Software Resources

Software Included: Easily print project sets and PDF documents with HP Click printing software. HP DesignJet Utility for Windows. HP Print Preview for Windows, HP Easy Start, HP Support Assistant with automated support, updates, and fixes.

Unique Differentiator (Why Buy the HP DesignJet T650 - 24"?)

Why Buy: Firstly this innovative large format plotter makes it affordable and easy to achieve accurate lines and sharp details in your CAD drawings, and presentations at resolutions up to 2400 dpi. Secondly, with convenient features, mobile printing and a space-saving design, the Wi-Fi connected HP Designjet T650 Printer fits the way you work. It also fits your workspace with the most compact design on a large-format plotter. In addition, the extreme simplicity of the printing process help save time from job prep to final print and be more productive.

HP DesignJet T650 Plotter Printer – 24″

Memory

1 GB

BOX CONTENTS

What’s in the box

HP DesignJet T650 24-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

CONNECTIVITY AND COMMUNICATIONS

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Print multi-size files in one click

Yes

Remote print enabled

Yes

WEIGHTS

Weight

29.5 kg

Package weight

38 kg

DIMENSIONS

Minimum dimensions (W x D x H)

1013 x 605 x 932 mm

Package dimensions (W x D x H)

1155 x 575 x 475 mm

BATTERY AND POWER

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

SOFTWARE AND APPLICATIONS

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

WARRANTY

Manufacturer Warranty

Two-year limited hardware warranty.

CARTRIDGES AND PRINTHEADS

Number of print cartridges

4 (C, M, Y, K)

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Colour(s) of printing supplies

Cyan, magenta, yellow, black

Ink drop

5.5 pl (C, M, Y)
12 pl (K)

Print cartridge volume delivered

80 ml (K)
38 ml (K)
29 ml (C, M, Y)

Print head nozzles

1376

Print heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]

PRINTER SPECIFICATIONS

Functions

Internal Storage

None

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Printer drivers included

Raster driver for Windows and macOS

Printing path

Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

Line accuracy

±0.1%[3]

Theoretical minimum line width

0.02 mm

Model size

610 mm

PRINT SPEED

Print speed

26 sec/page on A1, 81 A1 prints per hour[1]

PRINTING MEDIA HANDLING

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

PRINT AREA

Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

PRINT RESOLUTION

Print quality colour (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

8 L* min/2.10 D[4]

PRINTING MEDIA

Media sizes standard (metric rolls)

279 to 610 mm

Roll external diameter

100 mm

Roll maximum input

Roll maximum weight

4.1 kg

Media thickness

Up to 11.8 mil

Supported Primary Applications

Line drawings
Presentations
Renderings

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m

SUPPORTED PRINTING MEDIA

Media sizes supported

Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 610 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)

Media width, maximum

610 mm

Media thickness (metric)

Up to 0.3 mm

Name	HP DesignJet T650 Plotter Printer - 24"
SKU	5HB08A
Specification	No
Manufacturer	HP
EAN	1.95E+11
