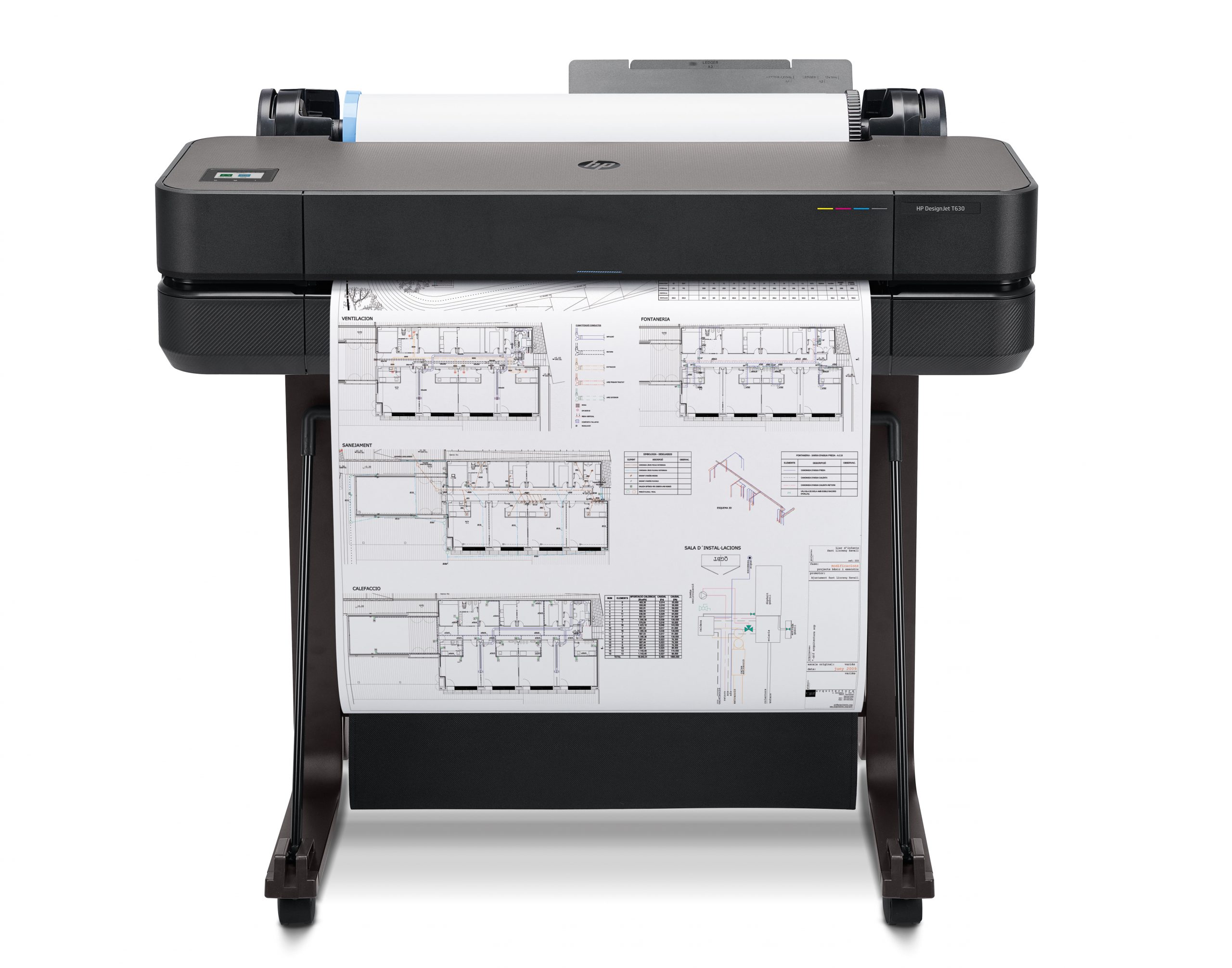

HP DesignJet T630 Large Format up to A1 Plotter Printer – 24″

MEMORY

Memory

1 GB

BOX CONTENTS

What’s in the box

HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

CONNECTIVITY AND COMMUNICATIONS

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Print multi-size files in one click

Yes

Remote print enabled

Yes

WEIGHTS

Weight

28.9 kg

Package weight

37.4 kg

DIMENSIONS

Minimum dimensions (W x D x H)

1013 x 605 x 932 mm

Package dimensions (W x D x H)

1155 x 575 x 475 mm

BATTERY AND POWER

Power

Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

SOFTWARE AND APPLICATIONS

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

WARRANTY

Manufacturer Warranty

One-year limited hardware warranty

CARTRIDGES AND PRINTHEADS

Number of print cartridges

4 (C, M, Y, K)

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Colour(s) of printing supplies

Cyan, magenta, yellow, black

Ink drop

5.5 pl (C, M, Y)
12 pl (K)

Print cartridge volume delivered

80 ml (K)
38 ml (K)
29 ml (C, M, Y)

Print head nozzles

1376

Print heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]

PRINTER SPECIFICATIONS

Functions

Print

Internal Storage

None

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Printer drivers included

Raster driver for Windows and macOS

Printing path

Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

Line accuracy

±0.1%[3]

Theoretical minimum line width

0.02 mm

Model size

610 mm

PRINT SPEED

Print speed

30 sec/page on A1, 76 A1 prints per hour[1]

PRINTING MEDIA HANDLING

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

PRINT AREA

Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

PRINT RESOLUTION

Print quality colour (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

8 L* min/2.10 D[4]

PRINTING MEDIA

Media sizes standard (metric rolls)

279 to 610 mm

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

4.1 kg

Media thickness

Up to 11.8 mil

Supported Primary Applications

Line drawings
Presentations
Renderings

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m

SUPPORTED PRINTING MEDIA

Media sizes supported

Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 610 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)

Media width, maximum

610 mm

Media thickness (metric)

Up to 0.3 mm
