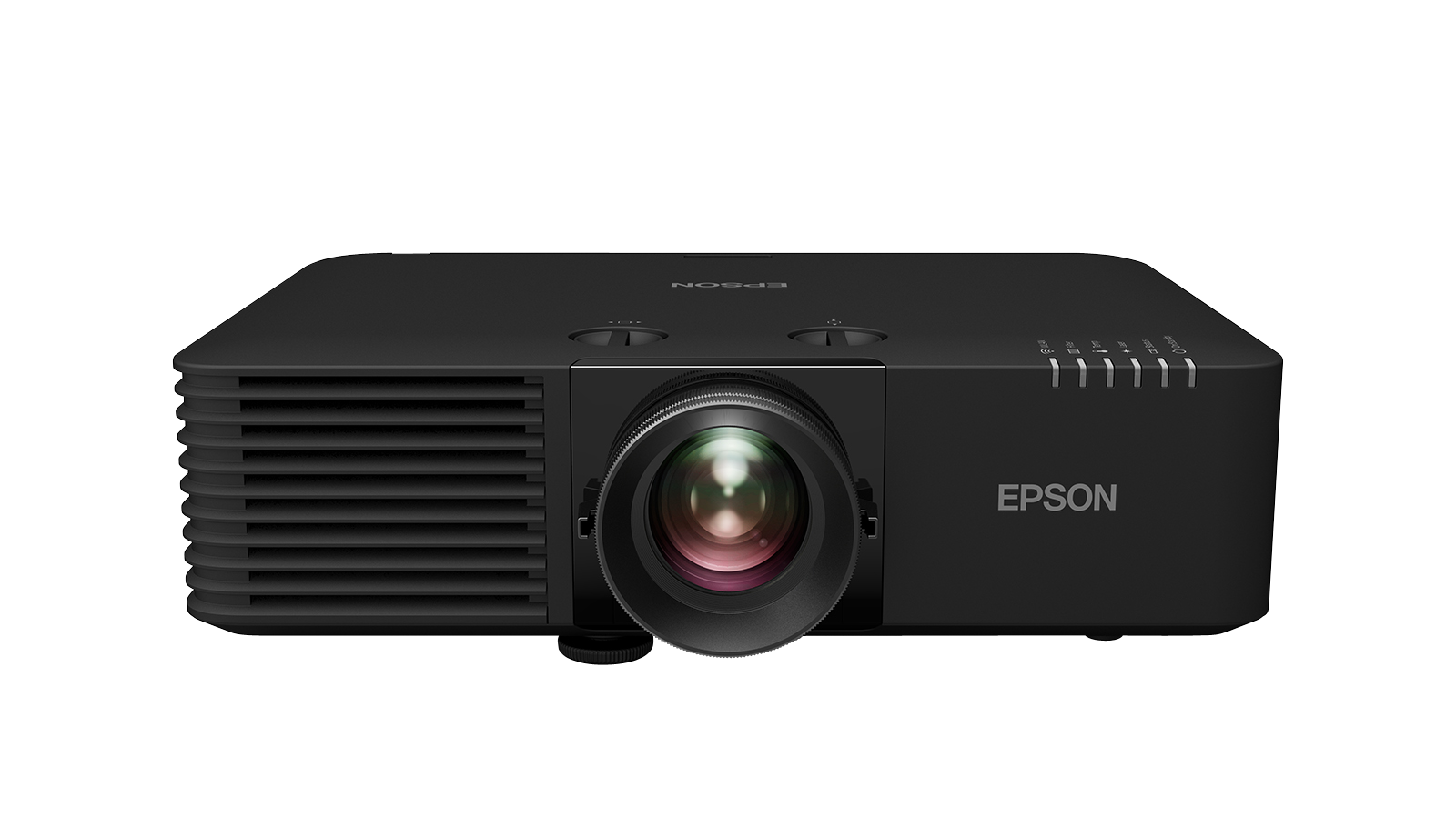

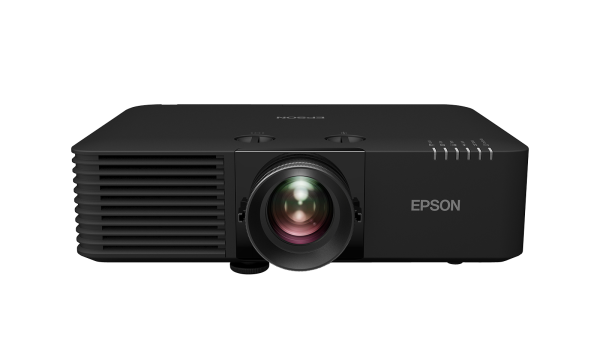

Epson EB-L775U Projector

4KE display solution

7,000 lumens brightness fixed lens laser projector, an ideal use for education, businesses and visitor attractions environments.

7,000 lumens
Wide lens shift
Multi-projection function
Large, scalable display

Exceed your vision with Epson compact 3LCD technology laser projector, delivery sharp and smooth 4K images. The EB-L775U delivers effective, practical and creative display applications across a number of different industries.

Description

EB-L775U

7,000 lumens brightness fixed lens laser projector, an ideal use for education, businesses and visitor attractions environments.

Exceed your vision with Epson compact 3LCD technology laser projector, delivery sharp and smooth 4K images. The EB-L775U delivers effective, practical and creative display applications across a number of different industries.

Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

7,000-lumen brightness

Sharp images and vivid colours, even in well-lit rooms

4KE resolution

Sharp 4KE images for excellent clarity

BYOD connectivity

with optional wireless or wired and HDBaseT

Effortless, flexible installation

Lightweight and compact design with wide lens shift

Large image

Scalable display size of up to 500 inches

1:43

Bright, cost-effective display solutions

Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L775U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L775U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.

Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L775U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in white.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

Specifications

Technology
Projection System	3LCD Technology
LCD Panel	0.67 inch with C2 Fine
Color Light Output	7,000 Lumen- 4,900 Lumen(economy) In accordance with IDMS15.4
White Light Output	7,000 Lumen In accordance with ISO 21118:2020
Resolution	WUXGA
Resolution Enhancement	4K enhancement
Aspect Ratio	16:10
On-Screen Pixel Count	4,608,000 (1920 x1200 x2)
Contrast Ratio	Over 5,000,000: 1
Light source	Laser
Laser Light source	20,000 hoursDurability High, 30,000 hoursDurability Eco
Keystone Correction	Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing	10 Bits
Colour Reproduction	Upto 1.07 billion colours
HDR support	HDR10
Optical
Throw Ratio	1.35 - 2.20:1
Zoom	Manual, Factor:1 - 1.6
Lens	Optical
Lens Shift	Manual - Vertical ±50 %, horizontal ±20 %
Screen Size	50 inches - 500 inches
Projection Lens F Number	1.5 - 1.7
Projection Lens Focal Length	20 mm - 31.8 mm
Projection Lens Focus	Manual
Connectivity
Interfaces	USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	HTTPS, IPv6, SNMP, PJLink
Advanced Features
Security	Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes	Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features	21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App
Video Color Modes	Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control	via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	300 Watt (Normal On-Mode), 209 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 277 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	440‎ x 304 x 122 mm (Width x Depth x Height)
Product weight	8.5 kg
Noise Level	Normal:38 dB (A) - Economy:27 dB (A)
Supported Temperature	Storage -10° C - 60° C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
Included Software	Epson Projector Management
Options	Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP20
Loudspeaker	10 Watt
What's in the box	Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty document
Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop
Colour	Black
TCO Certified	For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
Other
Warranty	36 months Carry in
Country of Origin
Country Of Origin	Philippines

What's in the Box

Documents

Epson EB-L775U Projector

Name	Epson EB-L775U Projector
SKU	V11HA96180
Specification	No
Manufacturer	Epson
EAN	8715946712963
