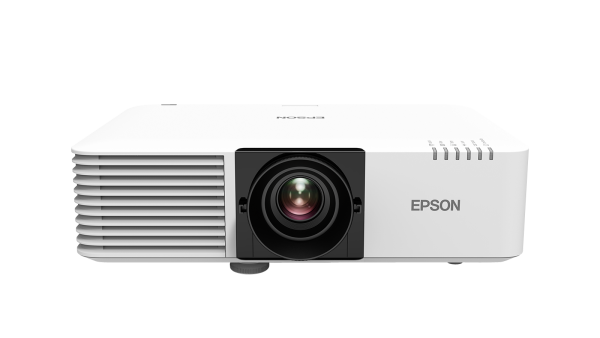

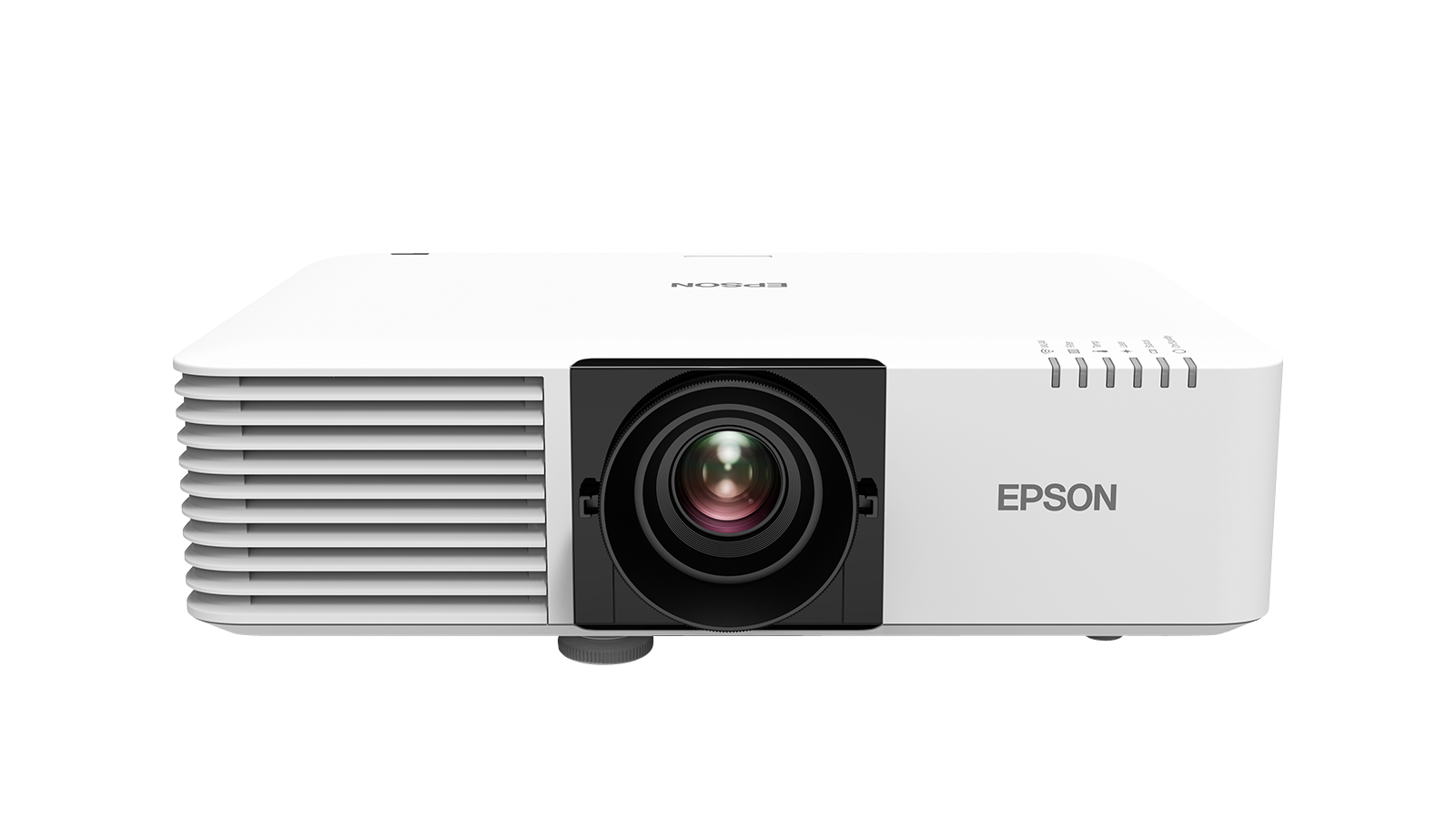

Epson EB-L720U Projector

WUXGA laser display

A powerful high brightness laser display with versatile connectivity, the EB-L720U is an ideal display solution for effective collaboration.

High brightness display
Large-format scalability
Advanced connectivity
Quick start up

The EB-L720U delivers exceptional image quality, focussing on professional content delivery and display performance. Designed around ease of use, up to a 500″ display size, affordability and sustainability, it’s the ideal imaging solution for today’s professional world.

Description

EB-L720U

A powerful high brightness laser display with versatile connectivity, the EB-L720U is an ideal display solution for effective collaboration.

The EB-L720U delivers exceptional image quality, focussing on professional content delivery and display performance. Designed around ease of use, up to a 500" display size, affordability and sustainability, it's the ideal imaging solution for today's professional world.

Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

High brightness, scalable size

Provides 7,000 lumens high-brightness display at up to 500"

Premium display features

Full HD, 4K support, edge-blending and geometric correction

Unrestricted viewing

Free from pixilation, glare, fingerprints and a central bevel

Social distancing support

Scalable display meets the needs of every audience configuration

Plug, click and collaborate

Collaborate using Epson’s wireless presentation system - ELPWP10

Featuring a powerful 7,000 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.

Providing more premium features than you would typically expect to find in this display class, the EB-L720U delivers edge-blending and rich geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless¹ with support for Miracast¹ makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.

Thanks to the renowned market leading² reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L720U comes with a standard 3-year warranty to provide lasting peace of mind.

Specifications

Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0.67 inch with C2 Fine
Color Light Output	7,000 Lumen- 4,900 Lumen(economy) In accordance with IDMS15.4
White Light Output	7,000 Lumen - 4,900 Lumen(economy) In accordance with ISO 21118:2020
Resolution	WUXGA
Resolution Enhancement	Full HD
Aspect Ratio	16:10
On-Screen Pixel Count	2,304,000
Contrast Ratio	5,000,000: 1
Light source	Laser
Laser Light source	20,000 hoursDurability High, 30,000 hoursDurability Eco
Keystone Correction	Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing	10 Bits
2D Vertical Refresh Rate	192 Hz - 240 Hz
Colour Reproduction	Upto 1.07 billion colours
Optical
Throw Ratio	1.35 - 2.20:1
Zoom	Manual, Factor:1 - 1.6
Lens	Optical
Screen Size	50 inches - 500 inches
Projection Lens F Number	1.5 - 1.7
Projection Lens Focal Length	20 mm - 31.8 mm
Projection Lens Focus	Manual
Offset	27: 1
Connectivity
Interfaces	RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Jack plug out, Jack plug in (2x), USB 2.0-A, USB 2.0, Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
Epson iProjection App	Ad-Hoc / Infrastructure
Advanced Features
Security	Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
2D Colour Modes	Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Edge Blending, Home Screen, Instant on/off, Long light source life, PC Free, Power on button, Screen share, Split-Screen-Function, Ultra-wide display (16:6), iProjection App
Video Color Modes	Cinema, Dynamic, Presentation, sRGB, DICOM SIM
Projector control	via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption	287 Watt (Normal On-Mode), 187 Watt (Eco On-Mode), 345 Watt (Normal Peak-mode), 258 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)
Supply Voltage	AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions	440‎ x 122 x 304 mm (Width x Depth x Height)
Product weight	7.8 kg
Noise Level	Normal:39 dB (A) - Economy:27 dB (A)
Supported Temperature	Storage -10° C - 60° C
Supported Humidity	Operation 20% - 80%, Storage 10% - 90%
Included Software	EasyMP Multi PC Projection
Options	Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01
Loudspeaker	10 Watt
What's in the box	HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
Room Type / Application	Boardroom, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction
Positioning	Ceiling Mounted, Desktop, Floor, Wall Mounted
Colour	White
TCO Certified	For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
Other
Warranty	36 months Carry in
Country of Origin
Country Of Origin	Philippines

What's in the Box

Documents

Epson EB-L720U Projector

Name	Epson EB-L720U Projector
SKU	V11HA44040
Specification	No
Manufacturer	Epson
EAN	8715946695587
